Artikel Nummer: 85.02.000.005S-AM

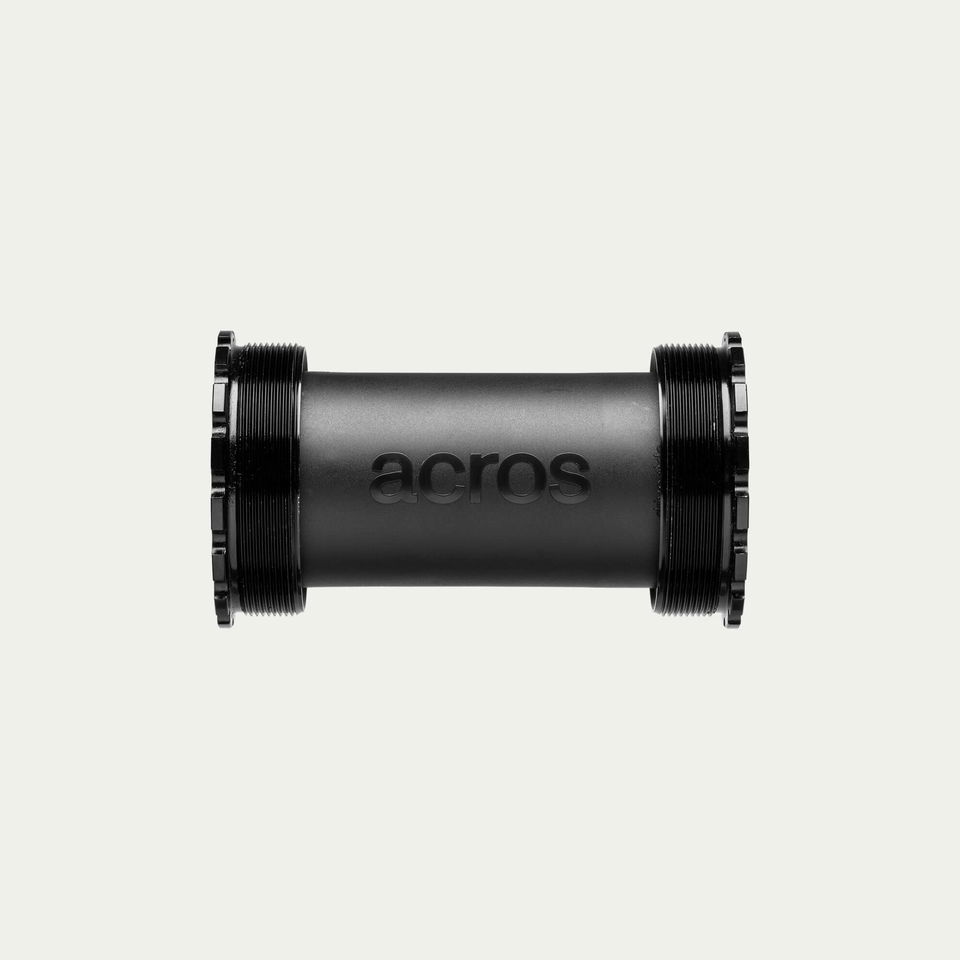

acros t47-innenlager

€80.00
Preise inkl. MwSt. zzgl. Versandkosten
Lieferzeit 1-3 Tage

⦁ Innenlager

⦁ Spacer

T47-System für Rahmen mit 46-mm-Bohrung und 24mm Shimano Hollowtech II Kurbelwellen geeignet.

· Durchmesser Kurbelachse: 24 mm

· Typ: T47-System mit innenliegenden Lagerschalen

· Gehäusebreite: 86,5mm, 89,5mm oder 92mm

· Einpressdurchmesser (ID): ~46 mm

· Außendurchmesser (OD): 51 mm

· Gewicht: 97g

Die Einbauanleitungen zu unseren Innenlagern findest du im Support-Bereich. Die Abkürzung dorthin führt über folgenden Link:

Beschreibung

Unser t47-innenlager richtet sich in erster Linie an alle Roadbikes, die ein passendes Tretlager für eine Sram Dub-, Shimano Hollowtech II- oder 30-mm-Kurbel suchen. In Kombination mit austauschbaren Rillenkugellagern aus Edelstahl und hochwertigen Dichtungen sorgen unsere Tretlager im t47-Baustil für eine unbekümmerte Zeit im Sattel und am Montageständer.
acros-toskana-produktion-2024_mtb-tag2_web-203
acros-toskana-produktion-2024_mtb-tag1_web-010

FAQ

As long as your frame is designed for bsa bottom brackets and comes with a 68 mm or 73 mm bottom bracket shell, the acros T47 bottom bracket will fit your bike! Not sure if you might need a different bottom bracket? Then our bottom bracket finder will help you!
Of course! Anyone with a DUB installation tool can fit our bsa bottom bracket themselves. In this video, we’ll show you the easiest way to do it.
  • Assembly instructions
  • Assembly instructions
  • Spacers for correct chainline
  • Grease for installation and maintenance
Replacing the bearings of a bottom bracket has never been easier. In our bearing replacement video, you’ll find everything you need to know.
Basically, you only need a DUB installation tool. If you don’t have one on hand, we’ve developed the bottom bracket tool, which fits all common bottom bracket standards.
Nothing could be easier! Since you can replace the bearings in our bottom brackets, you can simply choose the appropriate BSA bearing set for your crankset axle standard in our shop and ride a new crank. For replacing your bearings, we recommend using not only our bottom bracket tool but also our bottom bracket bearing tool, along with a generous dab of acros assembly grease.

Bikes and their components are often quite complex, especially because of the many different standards. If you have any further questions, you can always get in touch with us! You can find the best way to reach us here.
