enduro carbon wheelset 29"

€1,235.00

Prices incl. VAT plus shipping costs

Ready for immediate shipment, delivery time 1-3 working days within Germany

Artikel-Nr.: 892.02.100R1-28

laufradsatz ausführungen:

Freilauf:

  • 892.02.100R1-28

kurzbeschreibung

Teil deine Erlebnisse mit uns!

#ridemoreworryless

lagertechnik

Gleitlager & Industriekugellager

Das extra lange Gleitlager sorgt in Verbindung mit dem hochwertigen Edelstahl Industriekugellager für eine hohe Lebensdauer

textbox slider

lorem ipsum dolor sit amet, consectetur adipiscing elit

textbox slider

lorem ipsum dolor sit amet, consectetur adipiscing elit

What's included with the acros enduro carbon wheelset?
  • Wheelset
  • Tubeless valves
  • Rim tape
  • tx6 hub tool
  • Hub grease
More questions?

Wheels are a complex component. Alone due to the many different standards and sizes, it's not always easy to understand what you need. If you have any more questions, please feel free to get in touch.

Specifications
Wheel size
29"
Tire
Clincher
Spoke count
28
Brake mount
I.S. 6-bolt
Tubeless system
Tubeless Ready
Freehub
Shimano HG, 11-/12-speed SRAM XD, Shimano Microspline
Weight (wheelset)
1,610g +/-15g (SRAM-XD freehub), +50g for Microspline

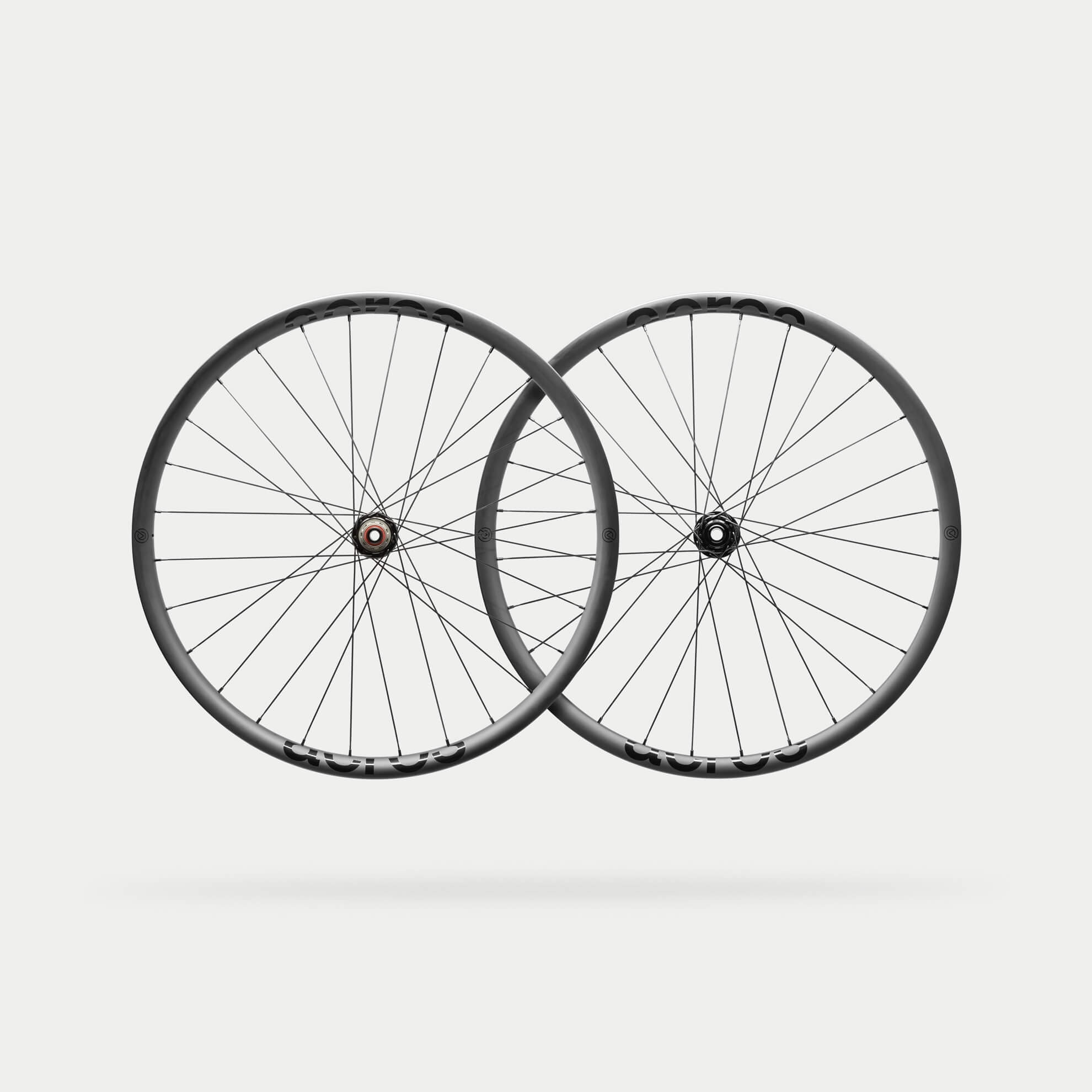

our enduro-carbon-wheelset 29"

Enduro is the new downhill, or what we once called freeride. Whatever you call it, the stresses on the bike and its components are just as high. With that in mind, we designed our enduro-carbon-wheelset for those who want to enjoy the descents instead of worrying about breaking their bike.



While weight wasn't on our list of characteristics to tick off as we developed this wheelset, it came out lighter than most in its class. Our team riders prove that it can take a beating despite its weight (1,610 g / 1,660 g), regularly putting it to the test in various races, including the Enduro World Series. The wheels are based on our nineteen-enduro-hubs, made in Germany, relying on the Boost standard and allowing you to choose a SRAM XD, Shimano HG or Shimano Microspline freehub. We combine the hubs with our enduro-carbon-rims, featuring an asymmetrical profile and an internal width of 29 mm. They're hand-laced using bladed Sapim CX-Ray spokes.



The result is an enduro wheelset that makes no compromises and doesn't shy away from anything you throw at it, making it a reliable companion for the world's toughest trailsSuppose pedalling uphill is more than just a means to an end and you spend most of your time on winding singletrack. In that case, our trail-carbon-wheelset (here) may be the better choice. If you clicked the wrong link and are looking for a super-light wheelset to take on the competition in your next XC race, our xc-race-sls-carbon-wheelset (here) is your best bet.

  • total weight: 1,6101,660 g (depending on the freehub)
  • nineteen-enduro-boost-hubs with 19 mm axles
  • the sound of the freehub can be adjusted in three levels – from inconspicuous to loud
  • asymmetrical rim profile and 29 mm internal width
  • hookless rim flange for improved durability and puncture protection
  • tubeless compatible
  • bladed Sapim CX-Ray spokes
  • aluminium Secure Lock nipples
  • including rim tape and tubeless valves

rutschfest

3M™ Griptape für sicheren halt.

Das aufgeklebte Griptape bietet eine gerade und bequeme Trittfläche für jegliche art von Schuh. Zudem lässt es sich bei Bedarf einfach tauschen.

im detail

Technical data

faq

frequently asked questions

Rim specifications
Rim type
acros-enduro-carbon-V2
Dimension (ETRTO)
622x29
Rim depth
25 mm
Internal width
29 mm
External width
35 mm
ERD
589 mm
Valve hole diameter
6 mm
Rim material
T-700 carbon
Front hub specifications
 Type
nineteen-boost
Hub spacing
15x110 mm thru-axle (Boost)
Material
Aluminium (7075)
Rear hub specifications
Type
nineteen-boost
Hub spacing
12x148mm thru-axle (Boost)
Hub body material
Aluminium (7075)
Freehub material
Hard-anodised aluminium (7075)
Freehub
Ratchet system/38 tooth
Spoke specifications
Lacing pattern front
3-cross
Lacing pattern rear
3-cross
Spoke lengths front
Right 294 mm, left: 292 mm
Spoke lengths rear
Right 292 mm, left: 292 mm
Spokes
Sapim XC-Ray / J-Bend
Spoke dimensions
2.0-(0.9x2.2)-2.0 mm
Spoke material
Stainless steel
Nipples
 Polyax Secure Lock
Nipple material
Aluminium
General information
Max. pressure
2.5 bar
Max. spoke tension
1200 N
Recommended tyre width
2.25–2.4"
Maximum rider weight
No limit
What features does the acros nineteen enduro boost hub offer?

Our lightweight wonder: the enduro boost hub with a 19 mm axle and angular contact bearings.

  • nineteen boost hub with 19 mm axle
  • Three adjustment steps for freehub volume, ranging from unobtrusive to loud
  • 38 tooth ratchet freehub
  • Stainless steel angular contact bearings
Do you offer a crash replacement service?

With our crash replacement service we offer you the opportunity to replace acros components that have been damaged through accidents or crashes at favourable rates. This offer is only valid for the original owner and for two years after purchase. If required, please use the crash replacement form and tell us how the damage occurred. Our service department will get in touch with you to discuss your options. The crash replacement service is only valid for damage that affects the functionality of components and does not cover visual or cosmetic flaws. Damage may not be caused intentionally and if we deem this to be the case, we reserve the right not to offer any crash replacement. In addition, the service does not apply for products previously replaced under guarantee or warranty. Due to the range of products we offer, we reserve the right to determine the discount offered at our own discretion.

Laufradgröße
29"
Reifentyp
Draht-/Faltreifen
Anzahl Speichen
28
Bremssystem
Disc 6-Loch
Tubeless-System
Tubeless Ready
Freilaufkompatibilität
Shimano & 11-/12-fach SRAM XD
Gewicht (Satz)
1.610 g bis 1.660g
